The XPC is a portable manhole inspection camera system designed for fast, high-clarity visual inspections of drainage and sewer networks. Suitable for 150mm diameter pipes and above, it provides an efficient solution for pre-inspection, condition assessment, and site surveys.
With a 2K QHD camera and up to 30x optical zoom, the XPC gives technical staff exceptional image quality and detailed surface-level inspections without the need for entry. Its tilt range of -90° to +20° allows full internal coverage of manholes, chambers, and pipelines.
Built for field use, the XPC combines a lightweight 3 kg design with durable IP68 protection against dust and water. Compatible with the X-Range Tablet and WRC-approved mina reporting software, it supports efficient workflows and professional reporting directly from site.
Interested about this product? Contact Us!
For all international customers please click here.
Product Specifications
| Part Number | 1013-0164-0 |
|---|---|
| Description | XPC Pole Camera |
| Application Range | 150mm (6″) + |
| Camera Quality | QHD (2560 x 1440) |
| Zoom | 30x Optical (+16x digital) |
| Tilt Range | -90° to 20° |
| Weight | 3 KG |
| IP Rating | IP68 |
| WiFi | WLAN Repeater |

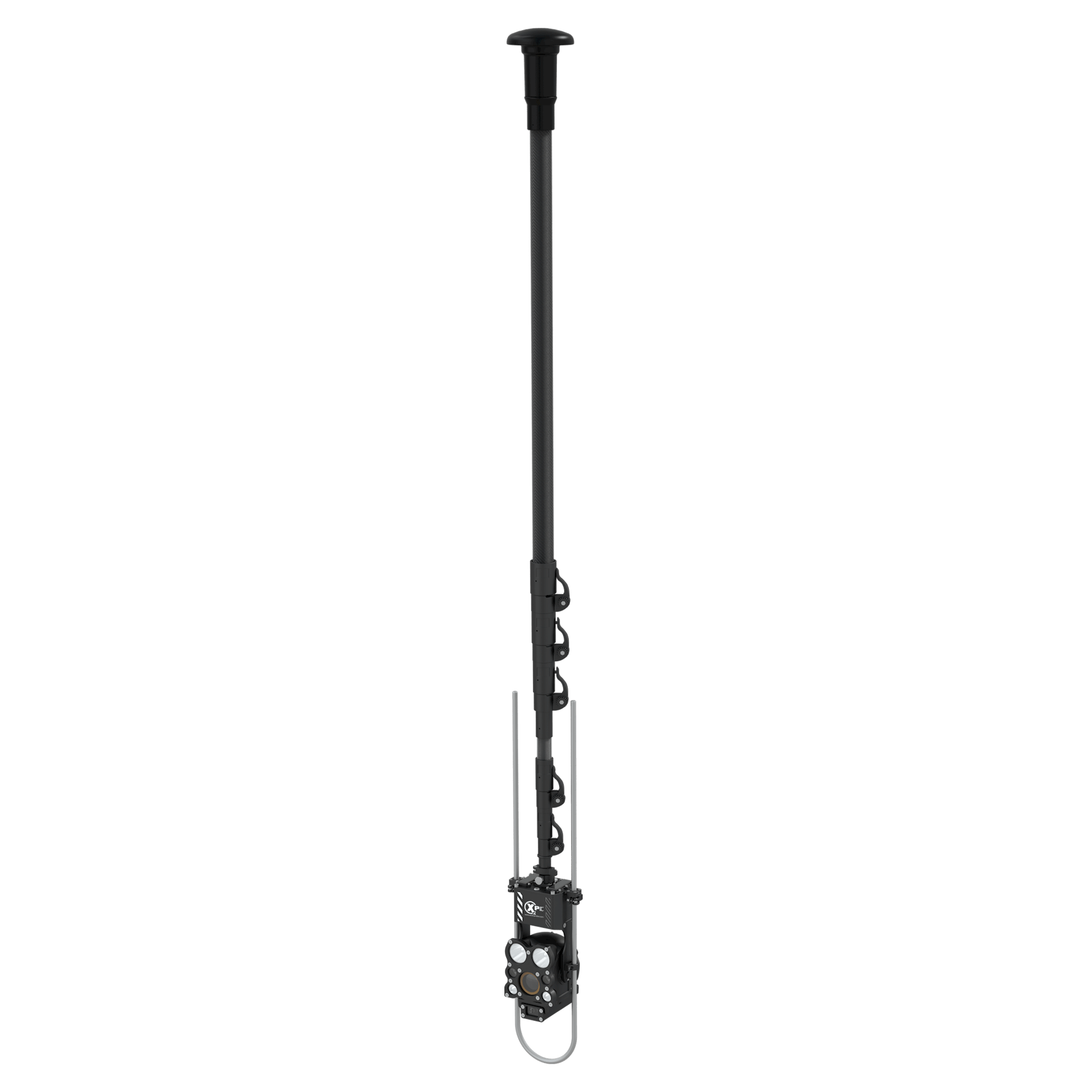

| Length | 8 Meter Telescopic Pole |
| Housing Material | Aluminium Alloy |
|---|---|
| Light Sensitivity | 0.05 Lux |
| Maximum Distance | 1.5m – 70m |
| Laser Accuracy | ± 5cm |

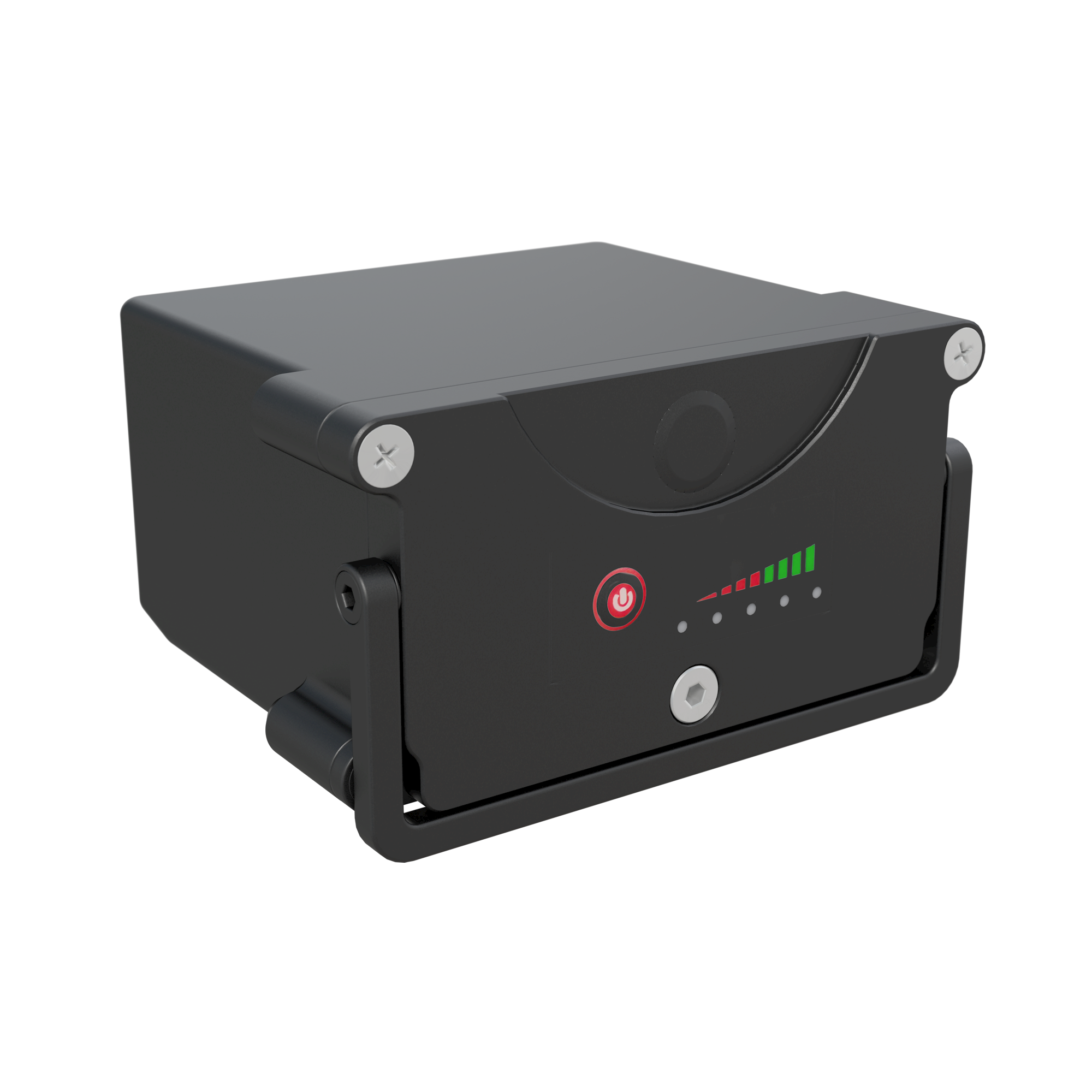

| Battery | 2.5 Hour Run Time Each |
| Included | Storage case, tripod, charger, x3 batteries |
| Approvals | UKCA and CE |
| Additional Length Available | Additional 4 meters available |
| Product Type | Portable inspection system |
