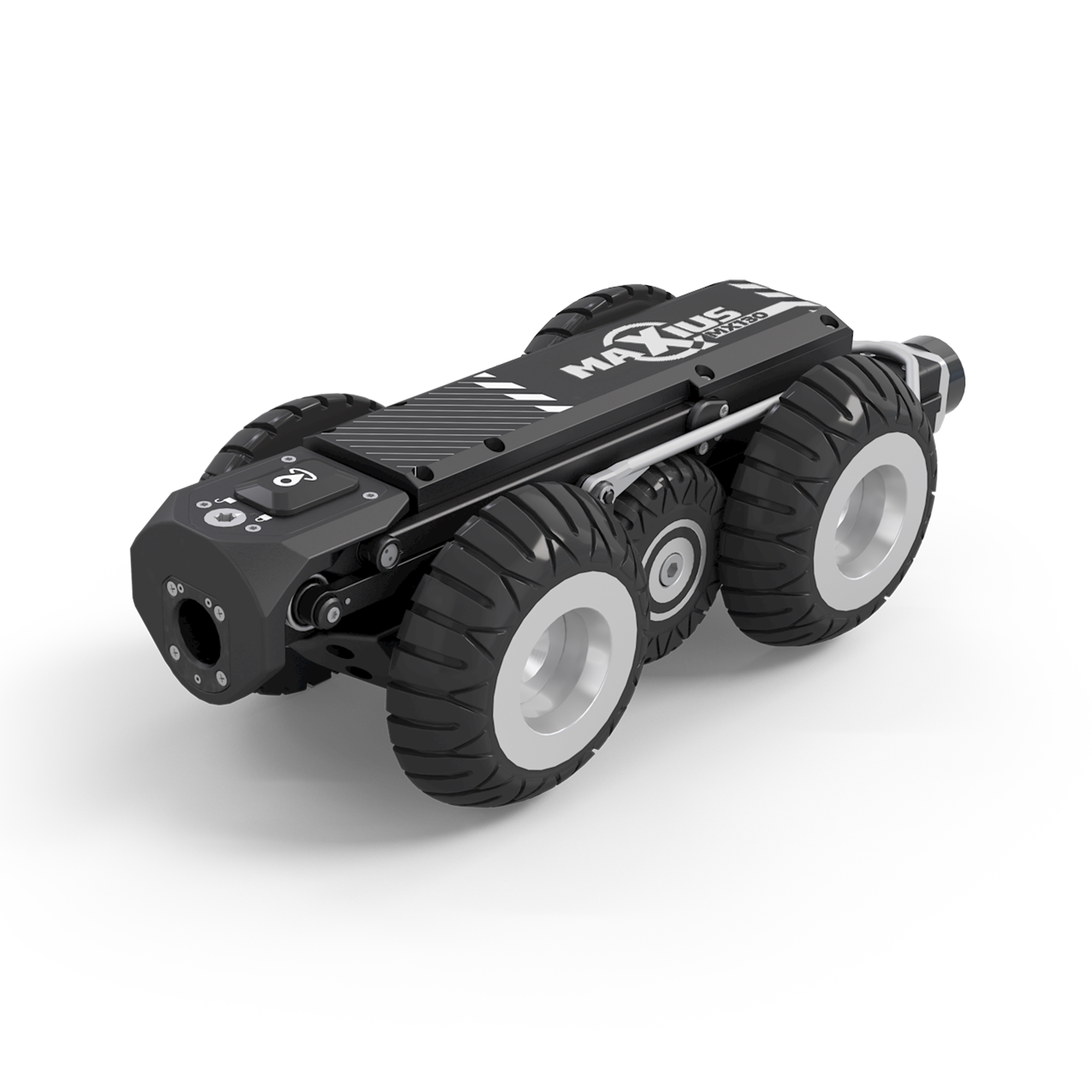

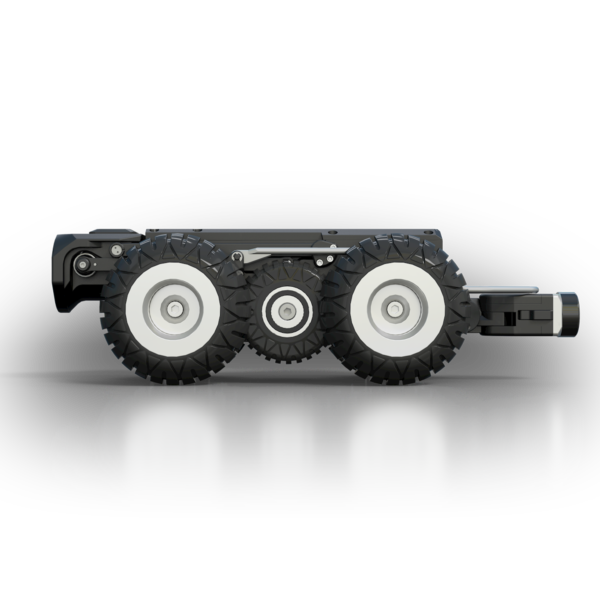

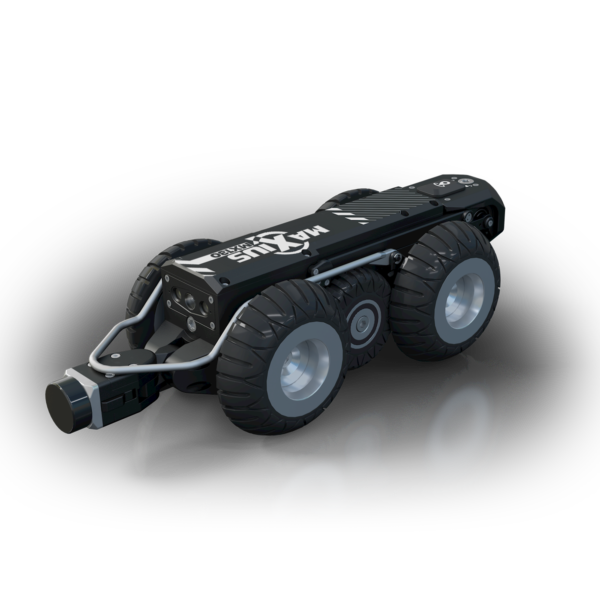

MX130 – Pipeline Inspection Crawler
The MX130 pipeline inspection crawler is a high-performance six-wheel-drive solution for reliable CCTV surveys in 150mm to 1000mm pipelines.
Built for demanding environments, the MX130 pipeline inspection crawler provides precise control, Full HD back-eye visibility, and stable operation across relined, restricted, and complex pipeline networks.
With durable stainless-steel construction, stabilisation control, an integrated electric lifter, sonde detection, tilt and roll sensing, and compatibility with the X-Range Tablet, mina reporting software, and reporting aligned with WRC coding standards, the MX130 pipeline inspection crawler supports accurate on-site inspection and reporting.

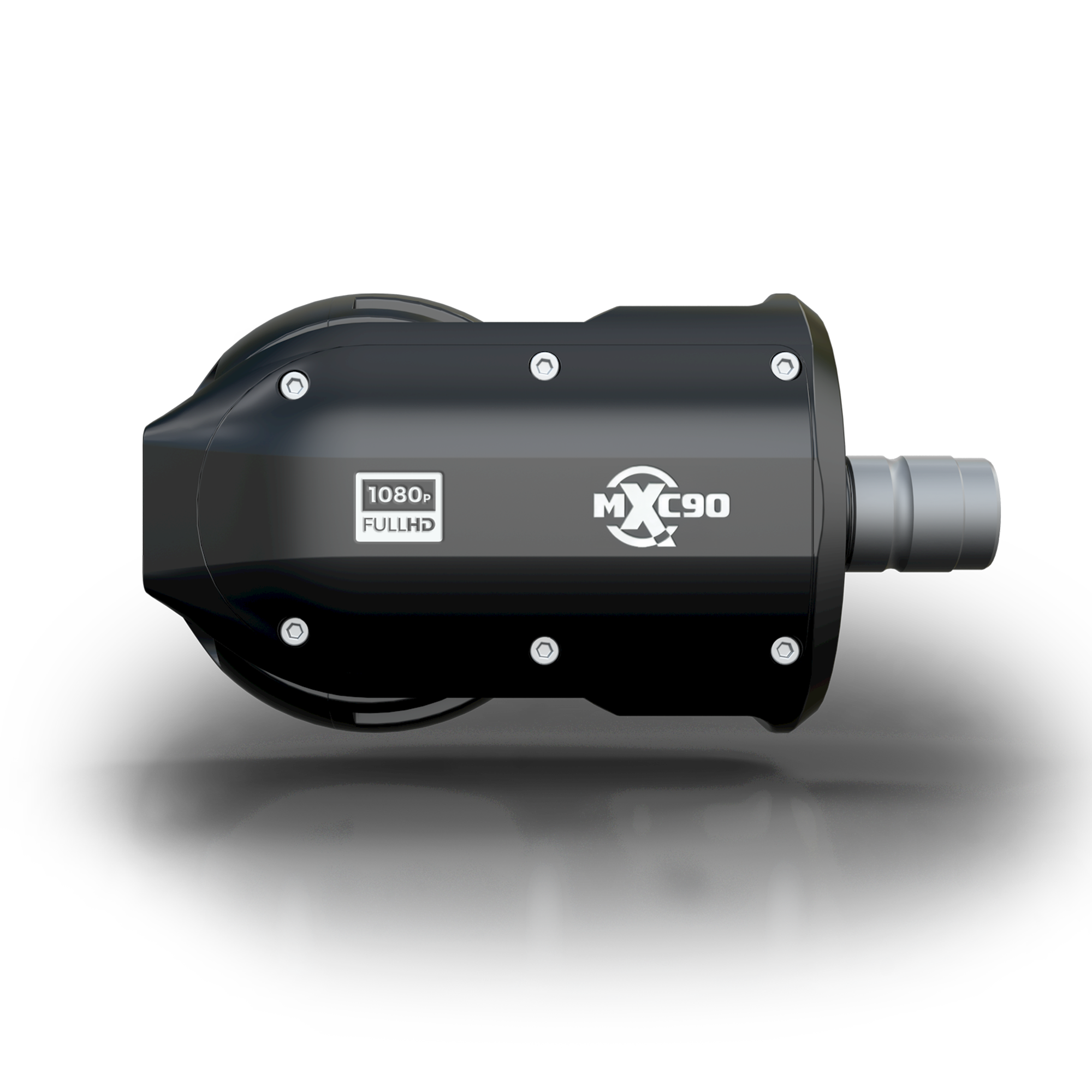

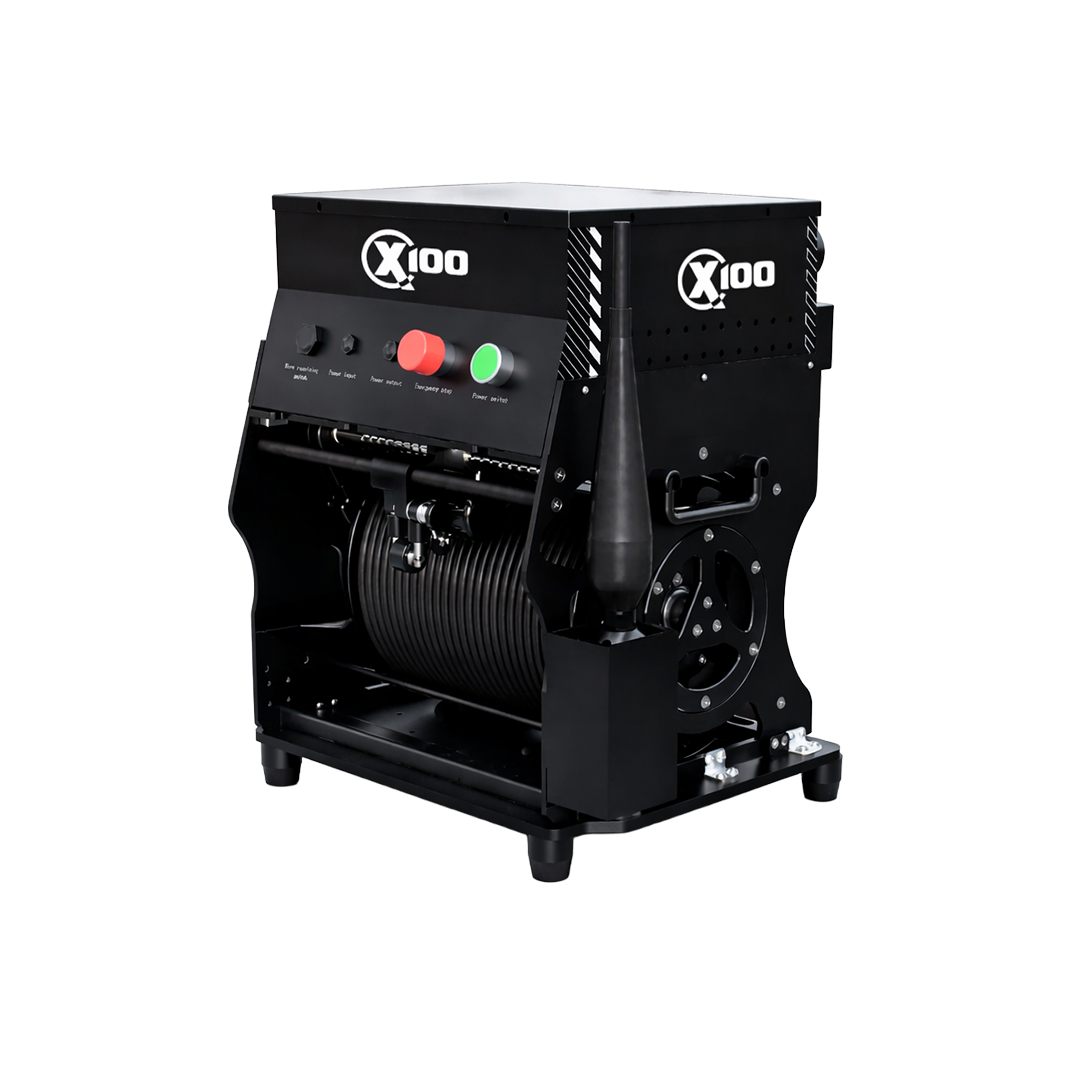

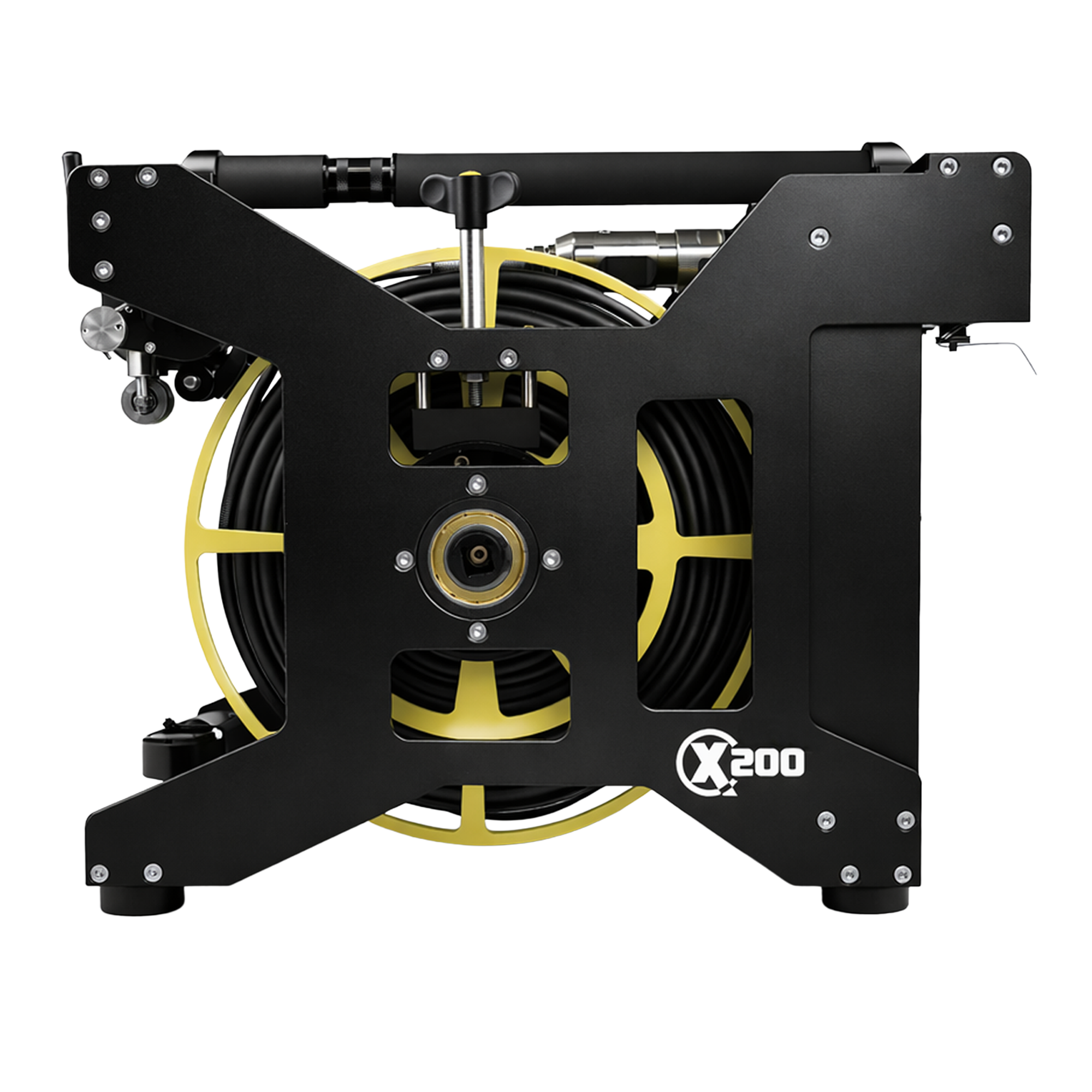

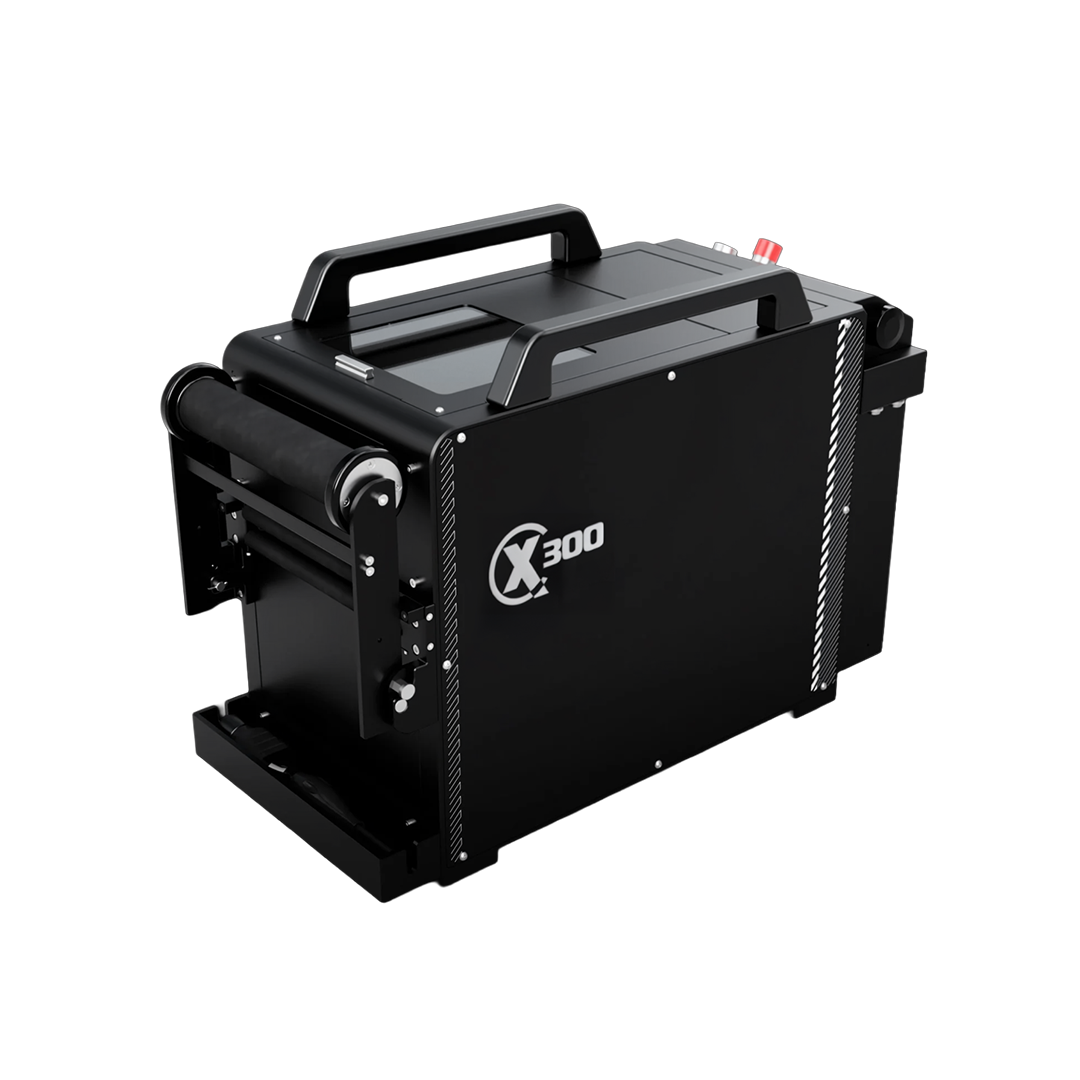

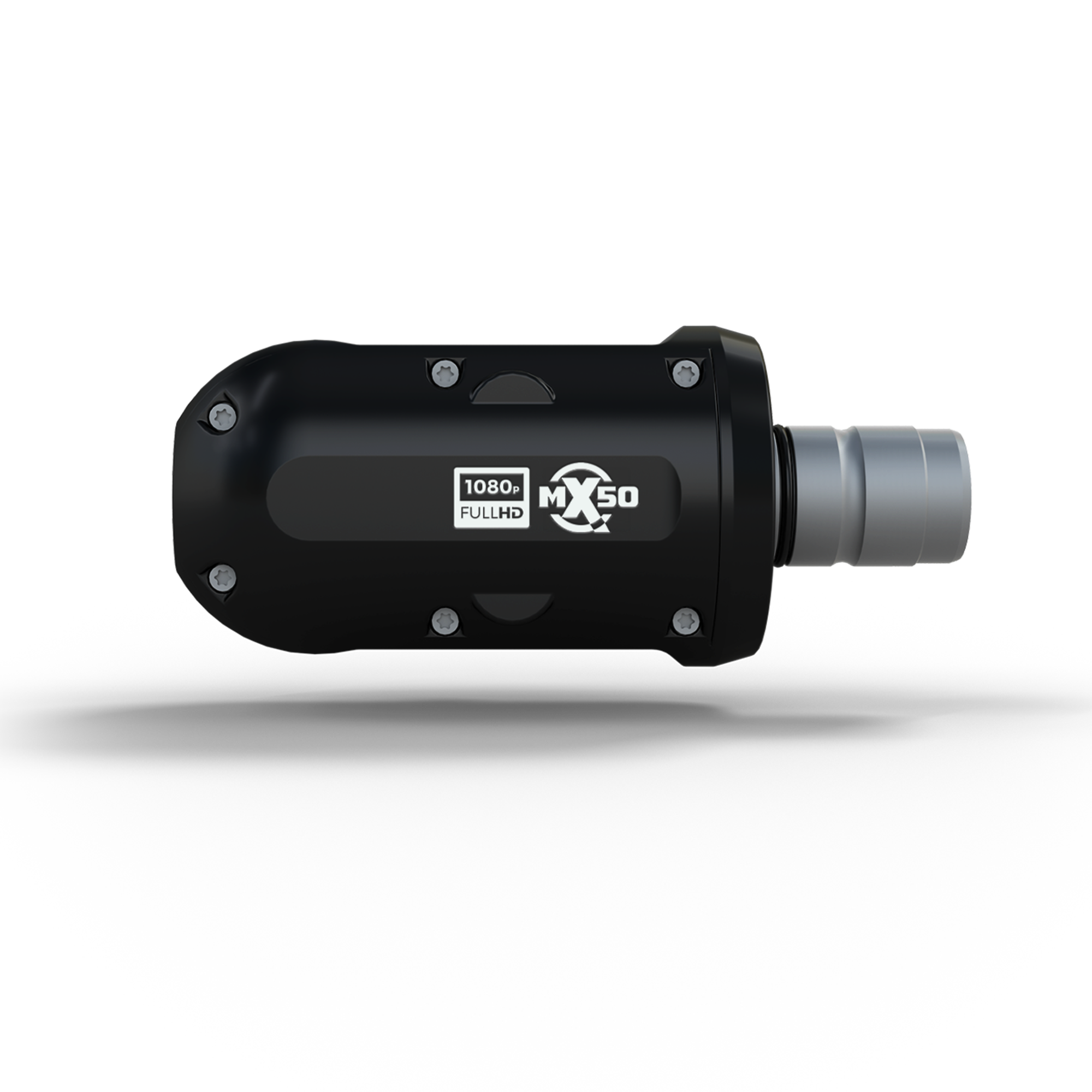

The MX130 Crawler Body is compatible with:
Interested about this product? Contact Us!
For all international customers please click here.
Product Specifications
| Part Number | 1012-0048-0 |
|---|---|
| Description | MX130 Crawler |
| Pipe Use | 150mm (lined) – 600mm Up-to 1000mm with Carrier (sold separately) |
| Weight | 10.45 kg |
| Dimensions | 430 x 106 x 99mm |
| Sonde Locator | 512Hz/640Hz/33kHz |
| Steerable | 3×3 Drive |
| Measurements | Tilt Sensor / Inclination Measurement |
| Rear Camera | 1080P – FULL HD Back Eye (Picture in Picture) |
|---|---|
| Operating Temp | 0°C – 40°C |
| Storage Temp. | -20°C – 60°C |
| Elevator | Electrical Lifter Adjustment |
| Sensors | Temperature and Pressure |
| Stabilisation Function | Integrated |
| IP Rating | IP68 |
| Pressure | Tight Up To 1 Bar |
| Accessories | 55mm Rubber Screw-On Wheel Set Filling Adaptor Note: Camera Not Included |
