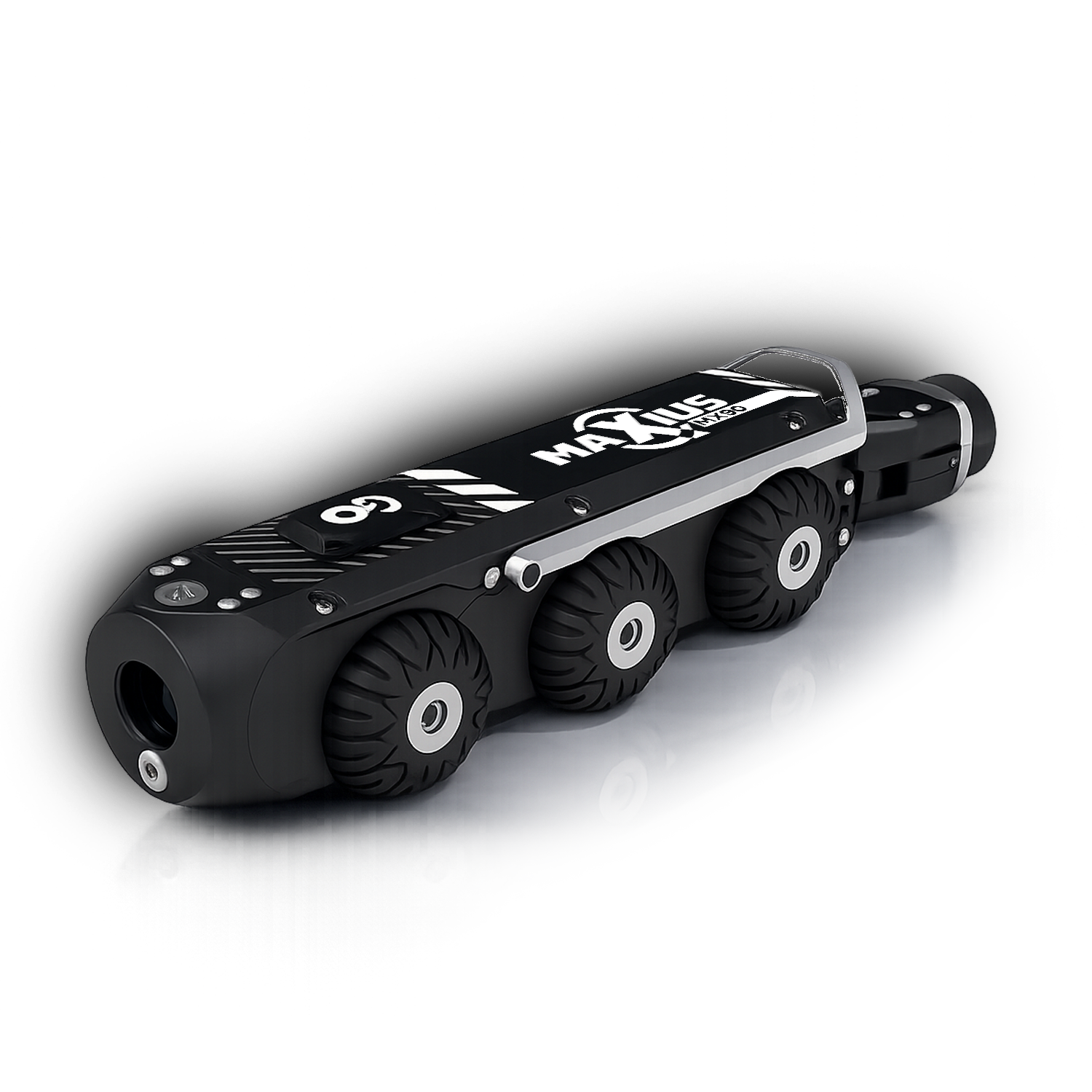

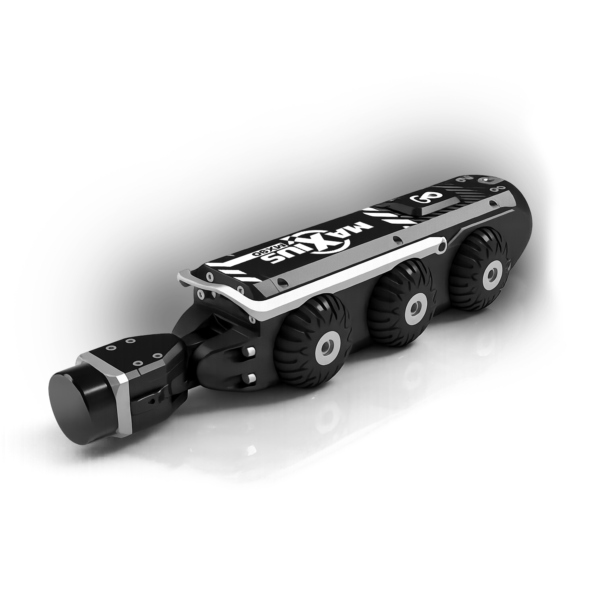

The MX90 is a compact, high-performance pipeline inspection crawler designed for reliable CCTV surveys in 100mm to 300mm pipelines. Built for smaller diameter networks, it provides precise control and stable operation in confined and complex pipe conditions.

Equipped with a Full HD back-eye camera and picture-in-picture capability, the MX90 gives technical staff clear real-time visibility during inspections. Its steerable 3×3 drive system supports controlled navigation through bends, junctions, and challenging pipework.

Constructed from durable stainless steel, the MX90 combines strength with a lightweight 5.4 kg design. With stabilisation, integrated sonde detection, tilt and roll sensing, and temperature and pressure monitoring, it delivers accurate inspection data and supports efficient reporting through the X-Range Tablet and mina software.

The MX90 Crawler Body is compatible with:

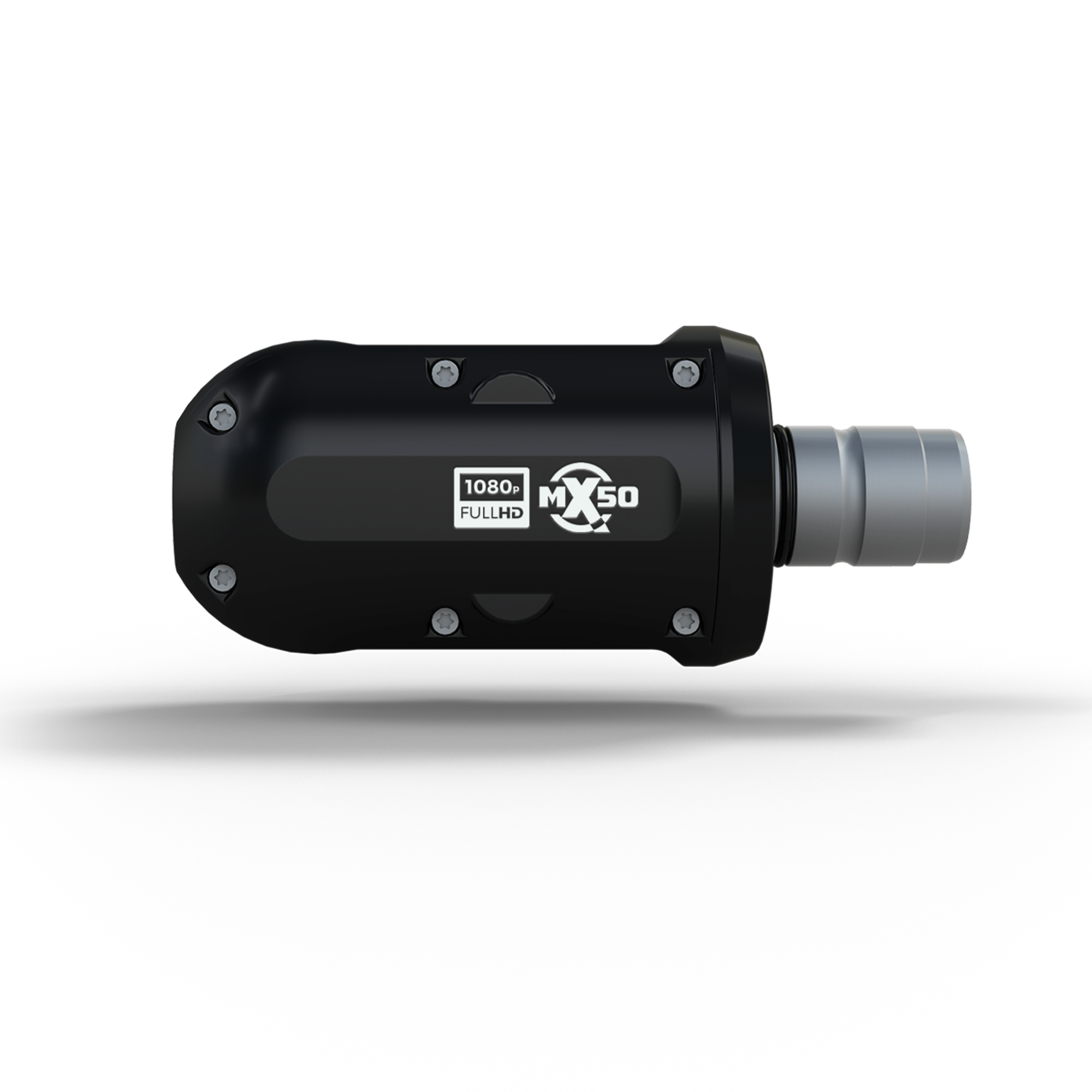

MXc50

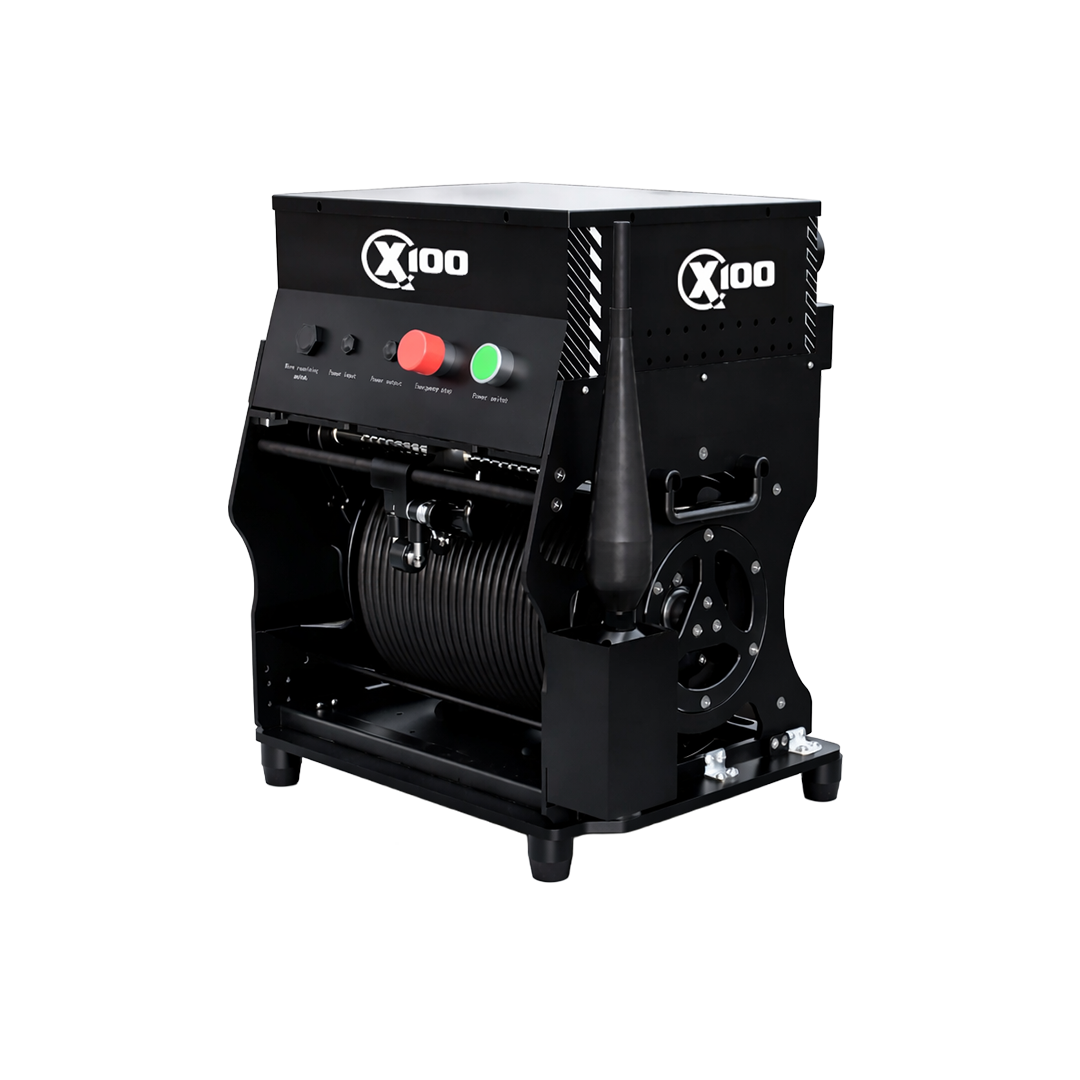

X100

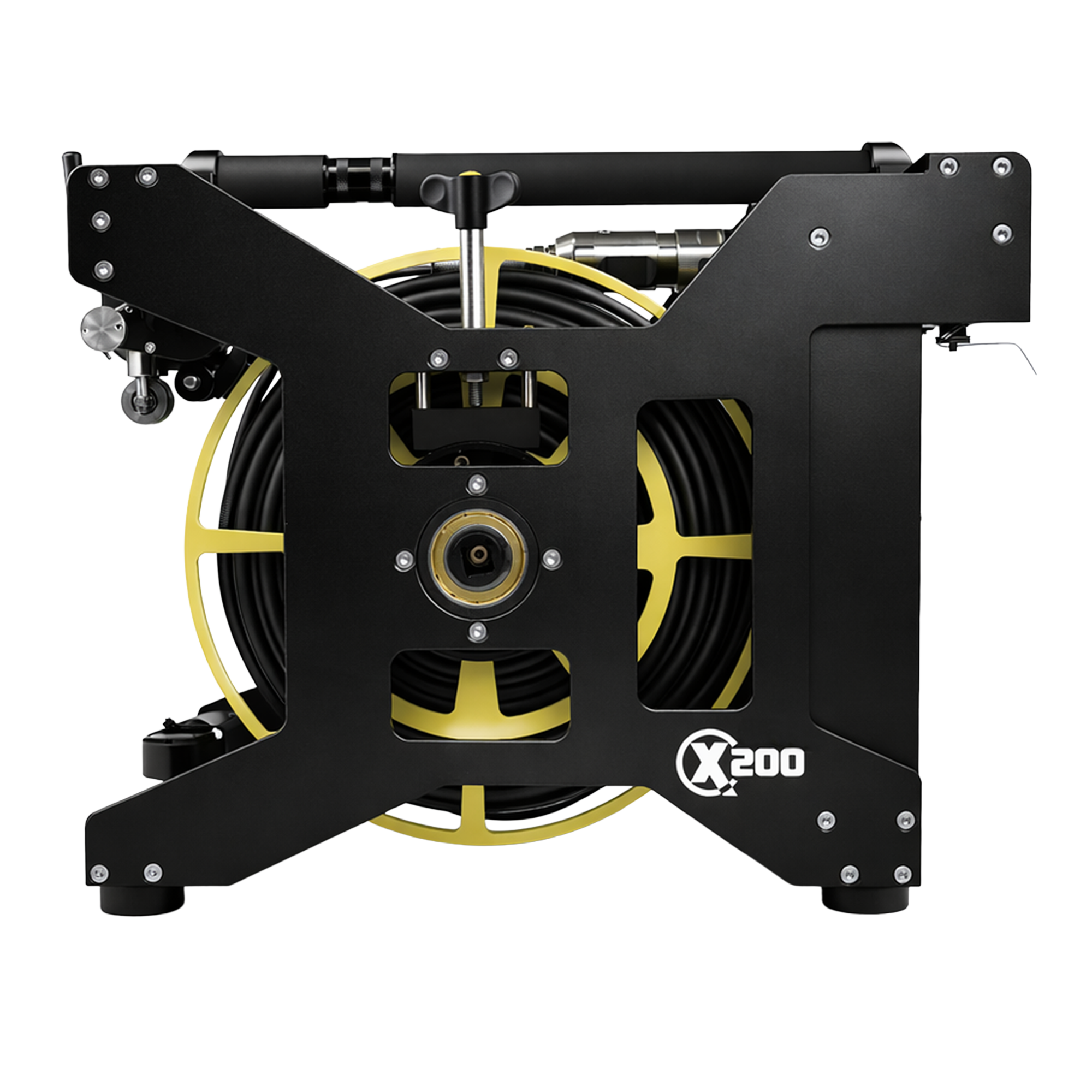

X200

X300

Accessories

View All Accessories

Wheels, pulleys, lowering gear and power & mounting options

Approvals

Interested about this product? Contact Us!

For all international customers please click here.

Product Specifications

Part Number	1012-0179-0
Description	MX90 Crawler
Pipe Use	100mm – 300mm
Weight	4.9 kg
Dimensions	346 x 65 x 68mm
Sonde Locator	512Hz/640Hz/33kHz
Rotation Limit	Endless
Steerable	3×3 Drive

Measurements	Tilt Sensor / Inclination Measurement
Rear Camera	1080P – FULL HD Back Eye (Picture in Picture)
Operating Temp	0°C – 40°C
Storage Temp.	-20°C – 60°C
Elevator	Electrical Lifter Adjustment
Sensors	Temperature and Pressure
Voltage	110-240V AC 50Hz
IP Rating	IP68
Pressure Tight	up to 1 Bar
Accessories	55mm Rubber Screw-On Wheel Set Filling Adaptor
